Using the DollarsMoCap Addon in Blender
The following Dollars MoCap products support native Blender addon,
- Dollars MONO (since v.250522)
- Dollars EGAO (since v.250601)
Recording is currently not supported in Blender 4.4.
Download and Installation
You can download the native DollarsMoCap Blender addon from the DollarsMoCap website.

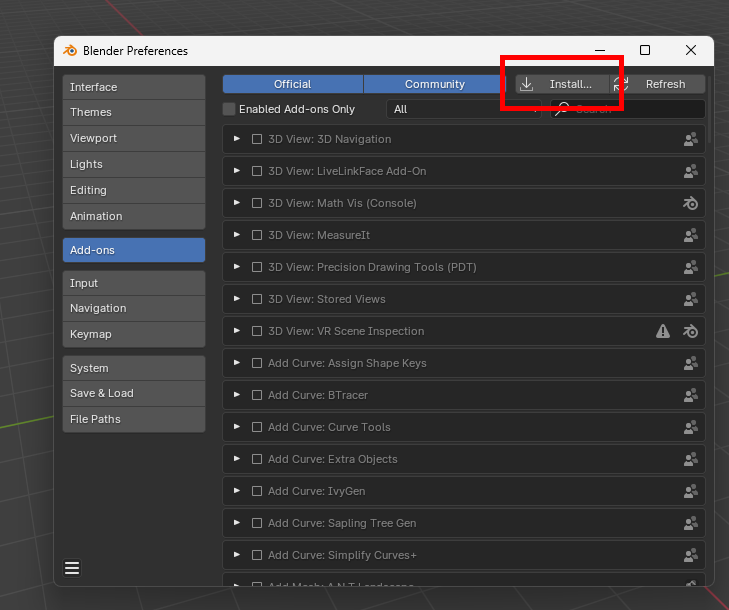

After downloading (no need to unzip), install it in Blender's Preference Menu as follows,

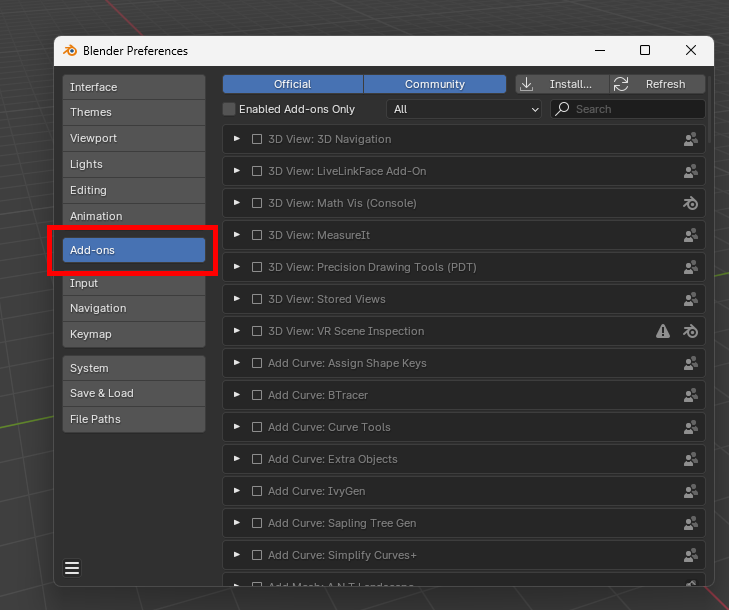

1. Switch to the Add-ons tab.
2. Click Install in the upper right corner.

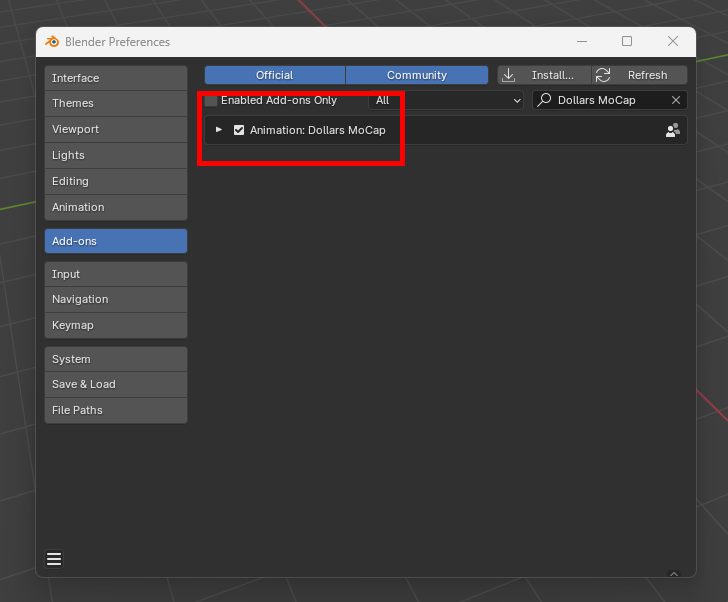

3. Select the downloaded zip file, install, and enable the add-on.s

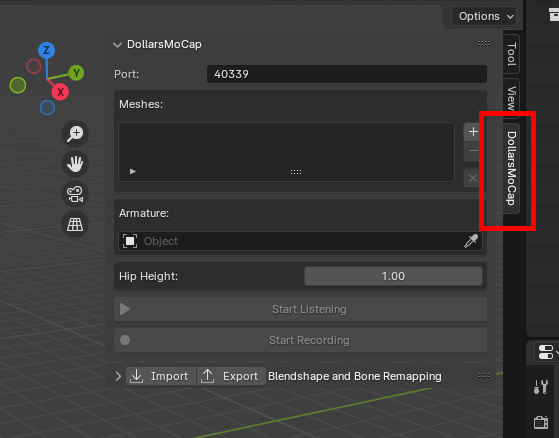

Once installed, you will find the DollarsMoCap tab in Blender’s sidebar.
Model Requirements
Motion Capture
For motion capture, your model should meet the following requirements，

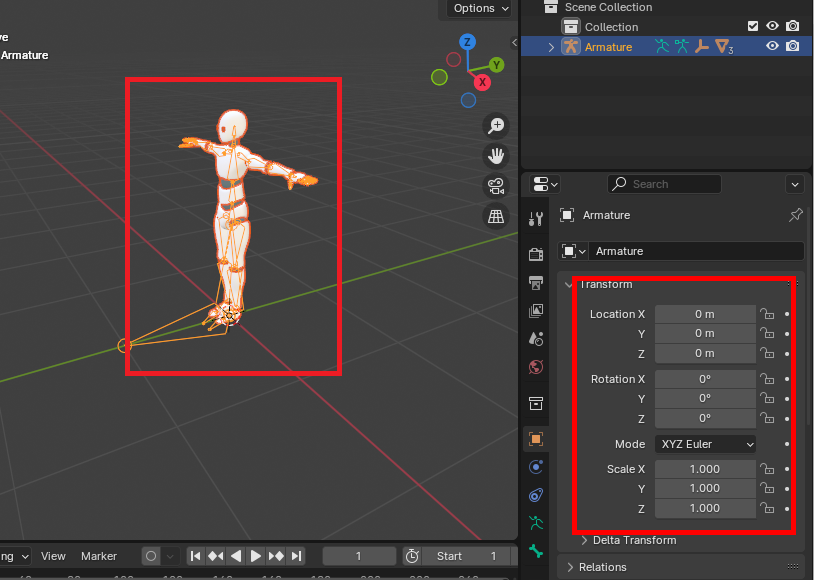

- Armature Transform
- Location: (0, 0, 0)
- Rotation: (0, 0, 0)
- Scale: (1, 1, 1)
- Armature Pose
- Standard T-Pose
Notes：
- If the armature’s Location or Rotation is not (0, 0, 0)
This may cause incorrect mocap results.

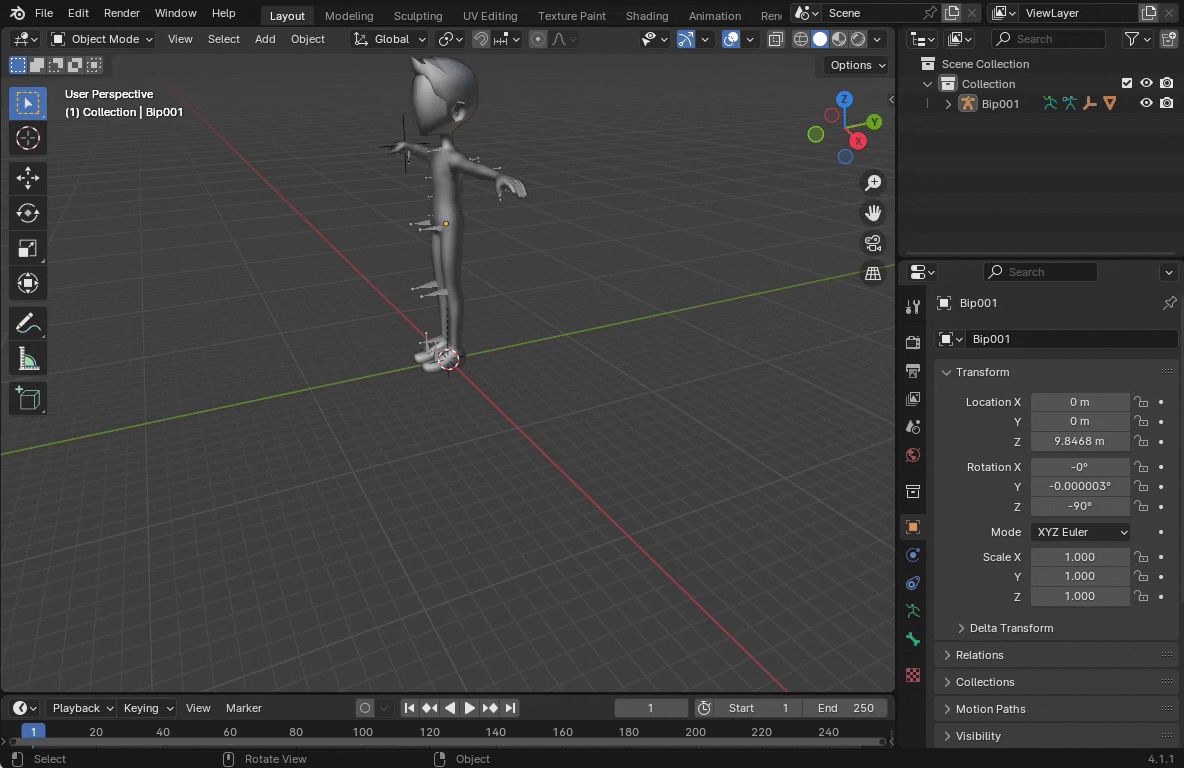

Before starting mocap, select the armature, then go to the Object menu and choose Apply > All Transforms to reset location and rotation.
- If the armature’s Scale is not (1, 1, 1)
This can cause abnormal hip motion.

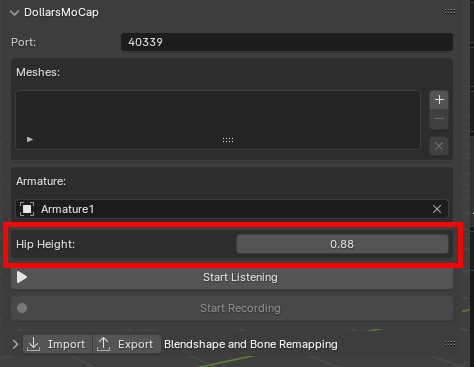

After setting up the hip bone, you can manually adjust the Hip Height parameter to match the actual hip height (in meters).
Facial Capture
For facial capture, your model should meet the following requirements,
- Blendshape Naming
It is recommended to use ARKit naming conventions for blendshapes.
- Multi-Mesh Consistency
If your model contains multiple face-related meshes, the blendshape names in each mesh must be consistent.
Notes：

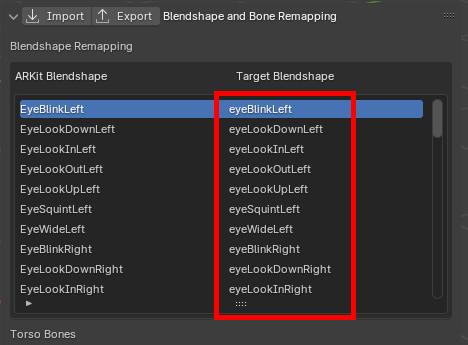

If your blendshapes do not follow the ARKit naming convention, you can remap them in the addon’s Blendshape Remapping panel.
Uninstalling the Addon

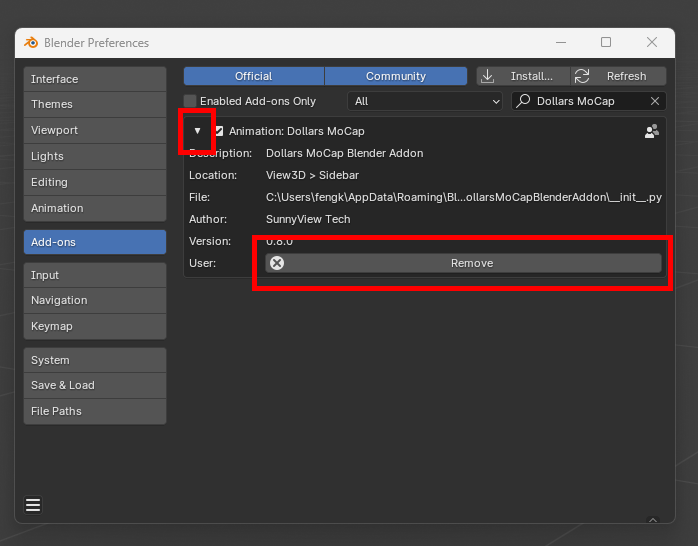

To uninstall the DollarsMoCap addon, click the triangle icon on the left to expand the addon details, then click Remove to uninstall.
